移動(dòng)式錫焊凈化器
功能
- 適用于所有焊接應(yīng)用
- 廣泛用于PCB板制造工作站
- 可同時(shí)處理10個(gè)以上工位
TECHNICAL SPECIFICATIONS:
| 1,1 kW | 1,5 kW | |
| Volume rate | 2.000 m3/h | 3.000 m3/h |
| Motor power | 1,1 kW | 1,5 kW |
| Power supply | 380 – 400 V / 50 Hz | 380 – 400 V / 50 Hz |
| Filter effectivity | ≥ 99,9 % | ≥ 99,9 % |
| Noise level | < 68 dB(A) | < 72 dB(A) |
| Dimmensions | 700 x 700 x 1.115 mm | 700 x 700 x 1.115 mm |
| Weight | 161 kg | 171 kg |

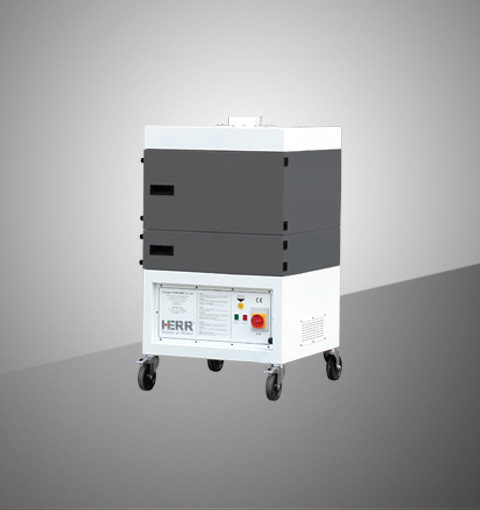

HERR soldering exhaust purification system
HERR soldering exhaust purification system can handle the work loads of 10 or more handheld soldering stations. This system is most useful in the assembly line of PCB manufacturing.
Soldering exhaust is purified by mechanical filtration and is equipped with activated carbon filters to remove chemical and odour elements. The industrial strength system is very effective at removing soldering fumes. The soldering exhaust purifier is available with fixed feet or with four lockable castor wheels.
零部件
Activated carbon filter
910201 Activated carbon filter
